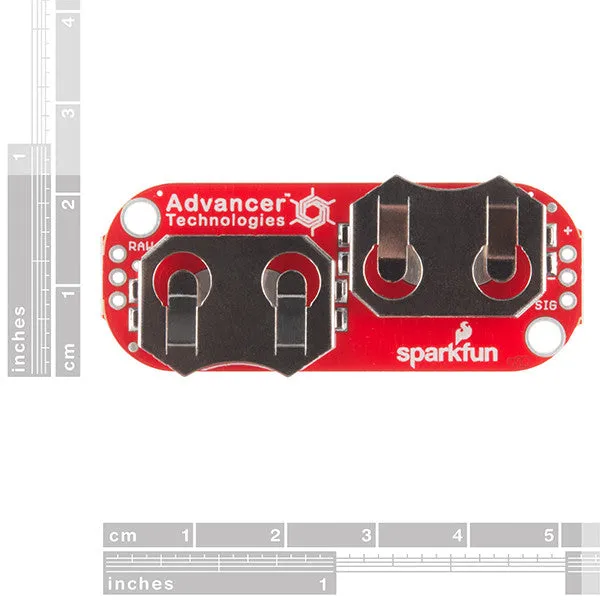

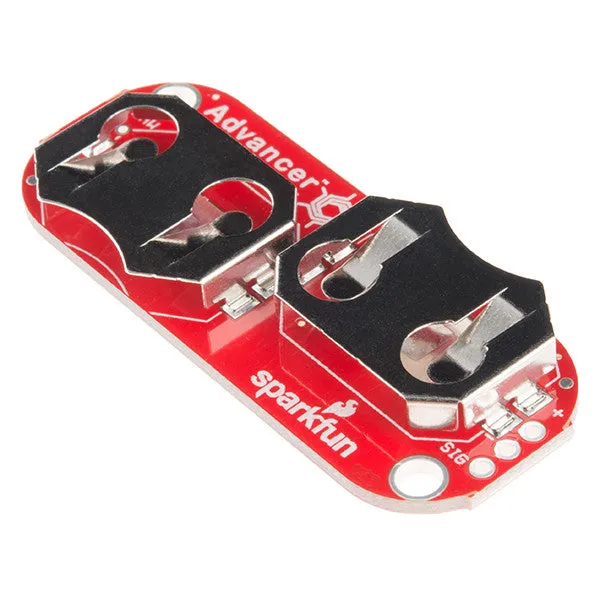

The MyoWare Power Shield is designed to take two standard to power the .
The coin cell batteries are connected in parallel for extended capacity at a nominal 3.0V. Connecting the MyoWare Muscle Sensor to battery power allows for a cleaner signal while also eliminating the possibility of creating a dangerous current path to the power grid.

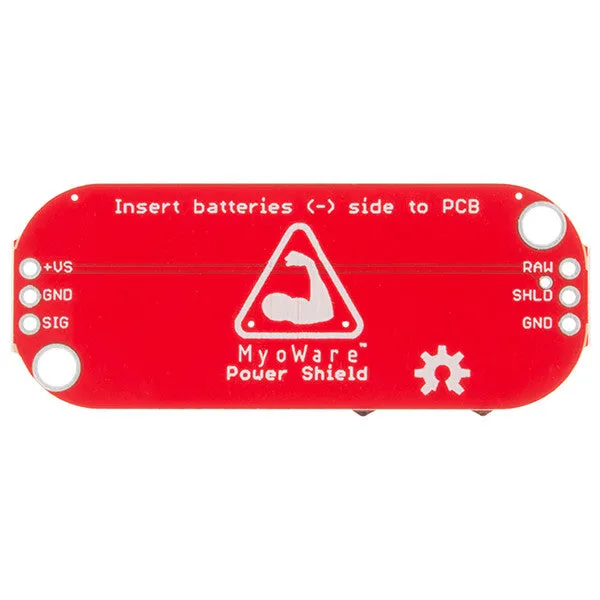

One thing to note is that due to the size of the batteries, the remote cable header on the MyoWare Muscle Sensor can’t be passed through. If you need access to these connections, this Power Shield will need to be stacked above the board(s) that need access.
The , that this shield attaches to, is an Arduino-powered, all-in-one electromyography (EMG) sensor from Advancer Technologies. The MyoWare board acts by measuring the filtered and rectified electrical activity of a muscle; outputting 0-Vs Volts depending the amount of activity in the selected muscle, where Vs signifies the voltage of the power source.
Note: The MyoWare Power Shield and the both provide power, but at slightly different voltages. Don’t use both of these shields at the same time.
