SP100 is a commerical system for windows and doors that boasts the optimum combination of safety and comfort. Fibreglass reinforced polyamide strips with ribs and/or hollow chambers guarantee high thermal insulation levels.
The system is available in a variety of aesthetic shapes to match the current architectural trends whilst offering all types of both inward and outward opening windows and doors. A double butt strip between the frame and vent and a lowered drainage ensure superior wind and water tightness. An additional asset of the system is the option to use it in combination with the Ventalis system.
|
Series:
|
Commercial System
|
||||
|
Name/Model:
|
SP100 Casement window
|
||||
|
Standard/Certificate:
|
Comply with AS2047
|
||||
|
Glass Standard:
|
Comply with AS2208/IGCC
|
||||
|
Structural glazing:
|
Comply with AS1288
|
||||
|
Brand:
|
Superhouse & SuperWu
|
||||
|
Color choice:
|
Customized:matt black;white;ultra silver;clear anodized;
Standard color: matt black and silver white
|
||||
|
Thermal Insulation:
|
U value from 1.5 to 2.0 W/M
2k
|
||||
|
Window Rating:
|
N6
|
||||
|
Sample lead time
|
7 days
|
||||
|
Powder coating thicker
|
60-80 μ
|
||||
|
Water penetration:
|
450 pa
|
||||
|
Ultimate strength
|
4500 pa
|
||||
|
Air infiltration
|
75/150
|
||||
|
Extrusion alloys:
|
6063-T5 profile with 2.0-3.0 mm thickness for doors
|
||||
|
6063-T5 profile with1.4-1.6mm thickness for sliding window
|
|||||
|
Hardware:
|
Australia doric with 7years warranty
|
||||
|
German brand with 10 year warranty
|
|||||
|
Surface treatment
|
Powder coated meet AS 3715, Electrophoresis,PVDF,Anodizing,or wood color
|
||||
|
Electrophoresis
|
|||||
|
Wood color
|
|||||
Q:What is your main product?
A:We can supply the window system (including profile, hardware, accessories, glass) as well as the finished products ready for installation.
Q:How can I know your price?
A:The price is based on buyer's specific requirement, so please provide below information to help us quote exact price to you. 1) Shop drawing / window schedule to show the window dimensions, quantity and type; 2) Frame color; 3) Type of glass and thickness (single or double or laminated or others) and color (clear, tinted, reflective, Low-E or others, with Argon or without).
Q:What is the standard size of your windows and doors?
A:Our product is CUSTOMER MADE. We always manufacture windows and doors according to buyer's dimensions.
Q:What is your delivery time?
A: 38 days after deposit and drawing confirmed
Q:What is your standard color for aluminum frames?
A:Powder coating (Frost black and Sliver grey)
Q:What is your payment terms?
A:Normally, 30% - 50% of total amount by T/T as deposit and balance before delivery. Irrevocable L/C at sight is also acceptable.
Q:Will we need to install the glass (onsite glazed) or do your windows come with the glass installed?
A:We will install glass at factory based on windows/doors dimension to make sure they can be safe during transportation and if easy for our buyer to install the whole windows/doors. Onsite glazed are recommended for big sized products.
Q:What is your warranty ? What do we do in case of problems?
A:7 years quality warranty is provided, including frame unfading nor peel-off, hardware and accessories working properly under correct operation.

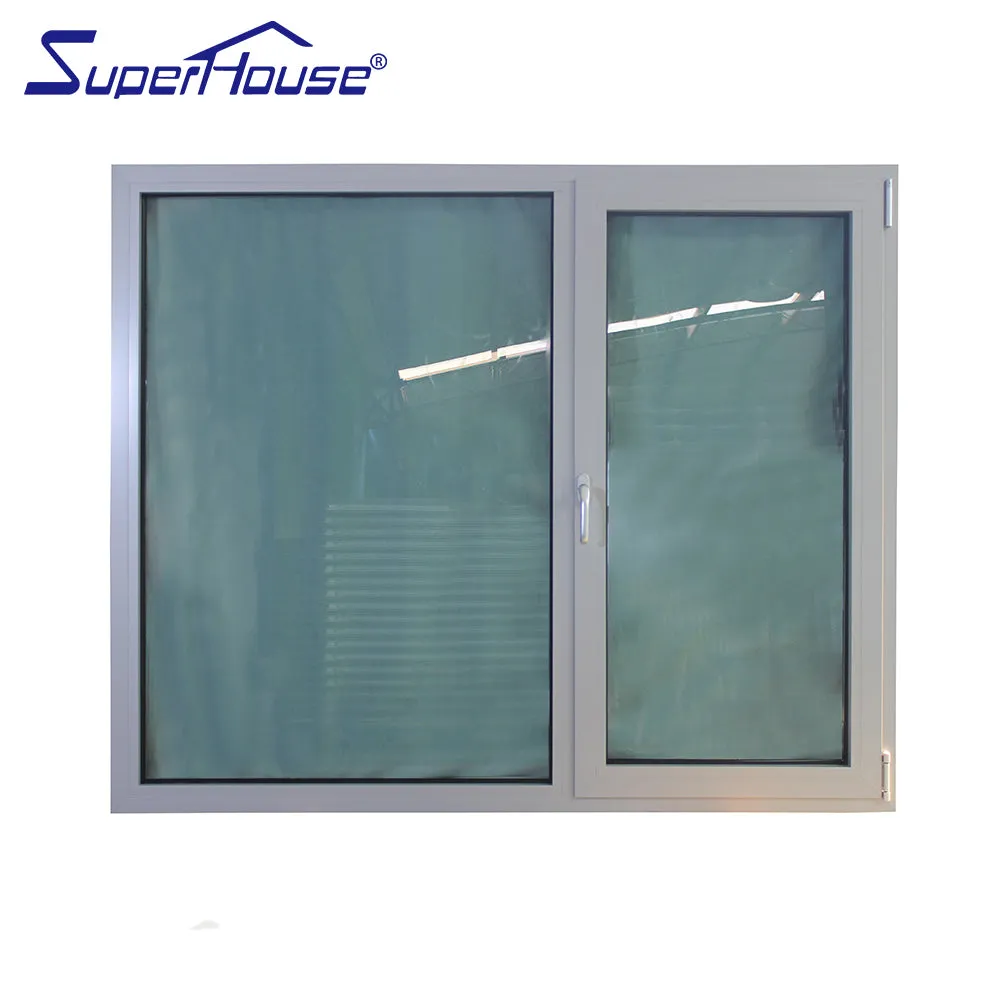

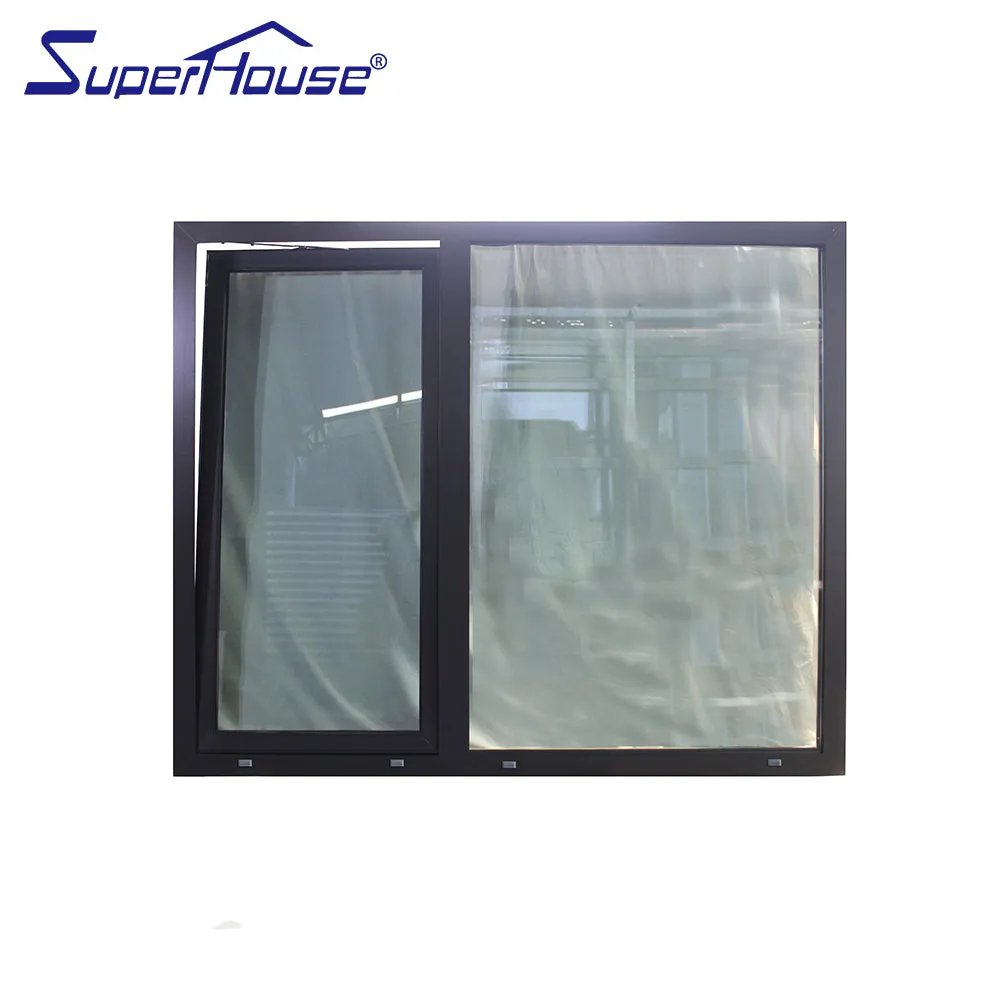

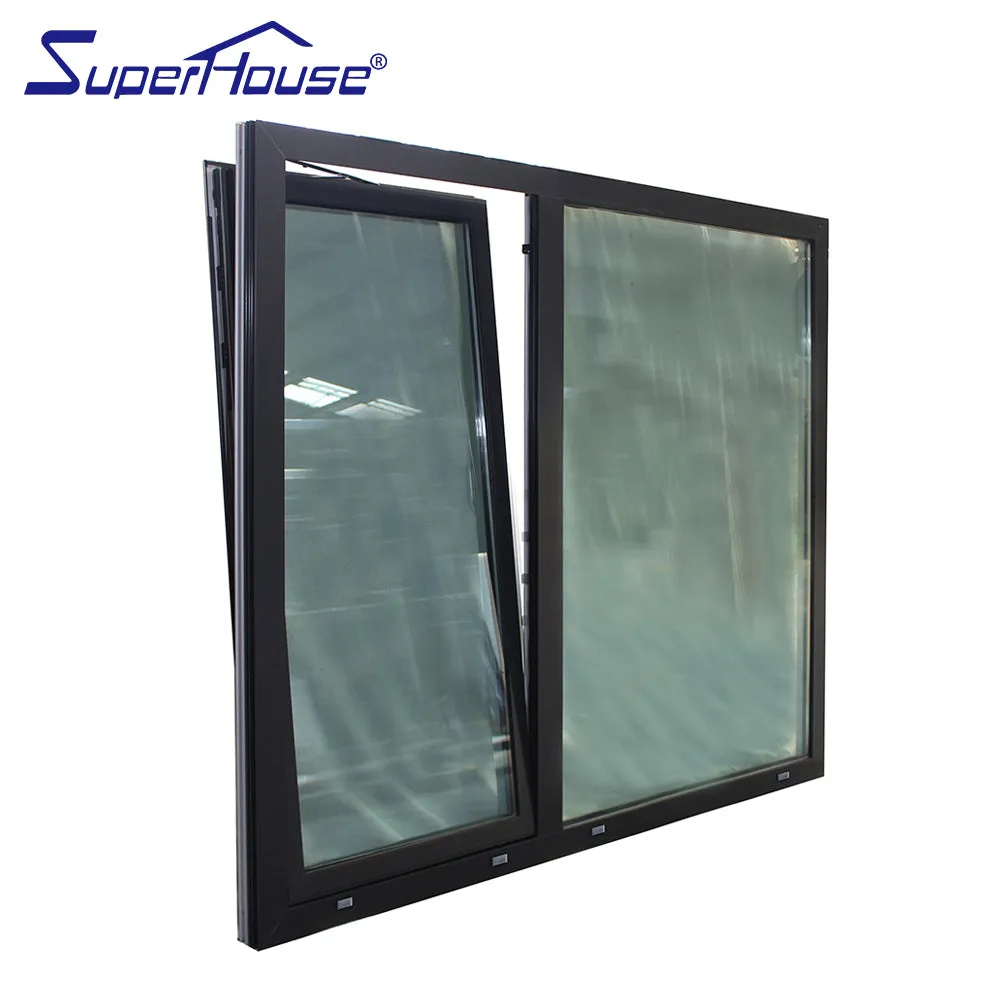

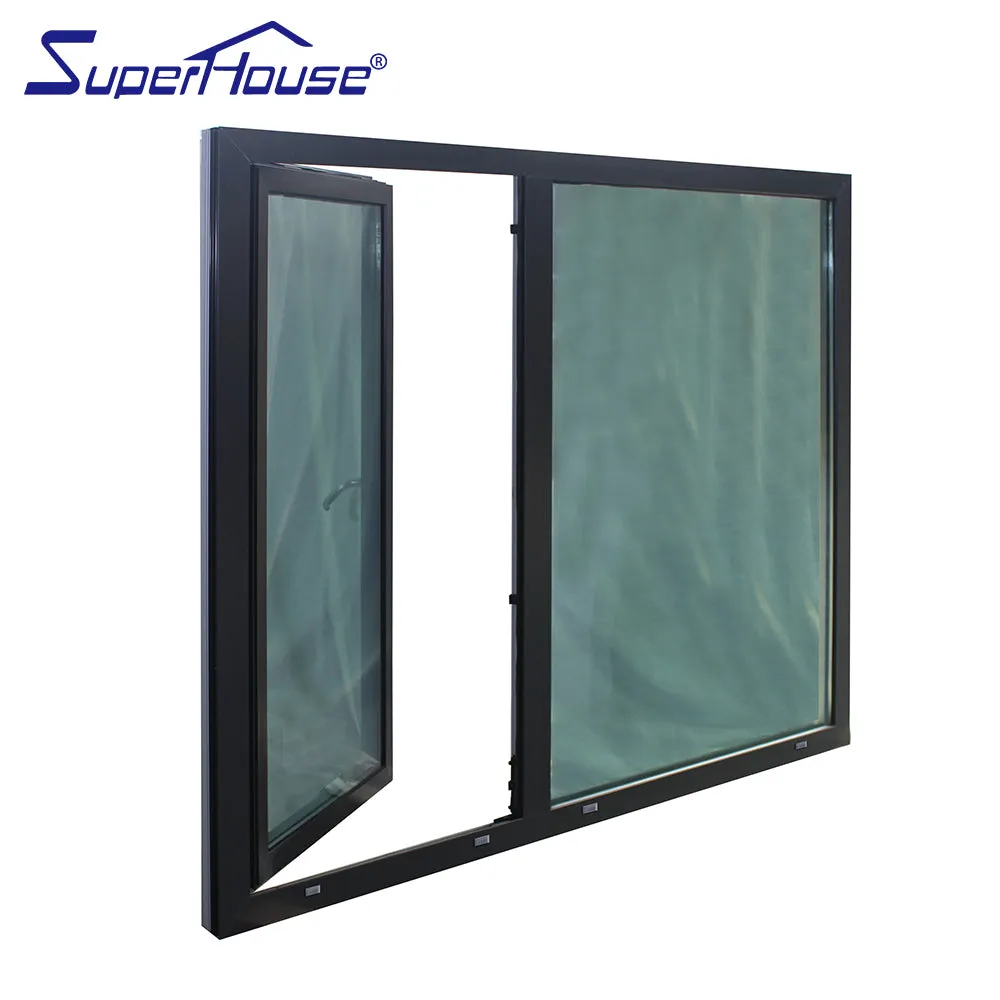

Superwu Thermal break double glazed Aluminum tilt and turn window modern window
$ 49.28
$ 64.06
